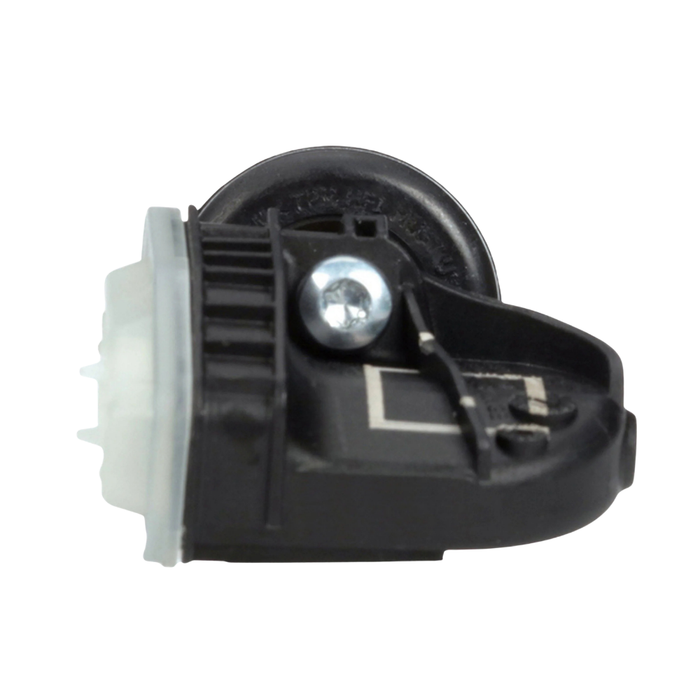

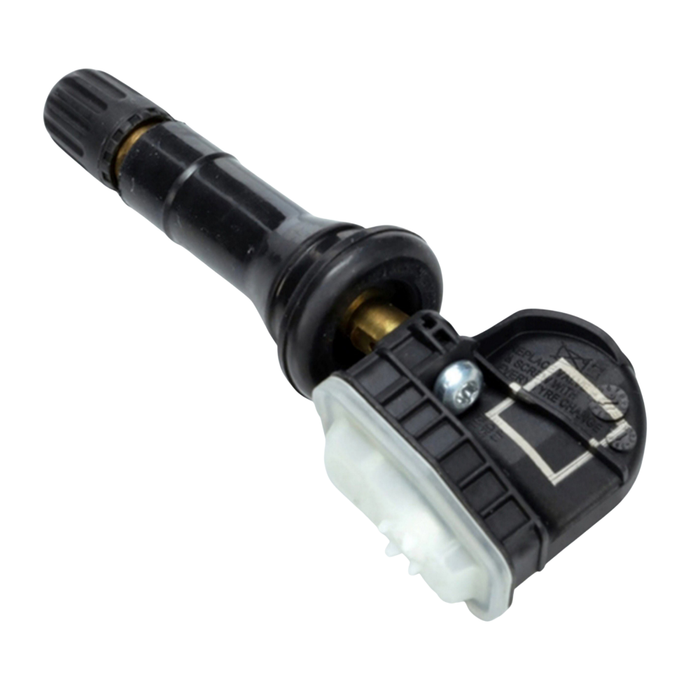

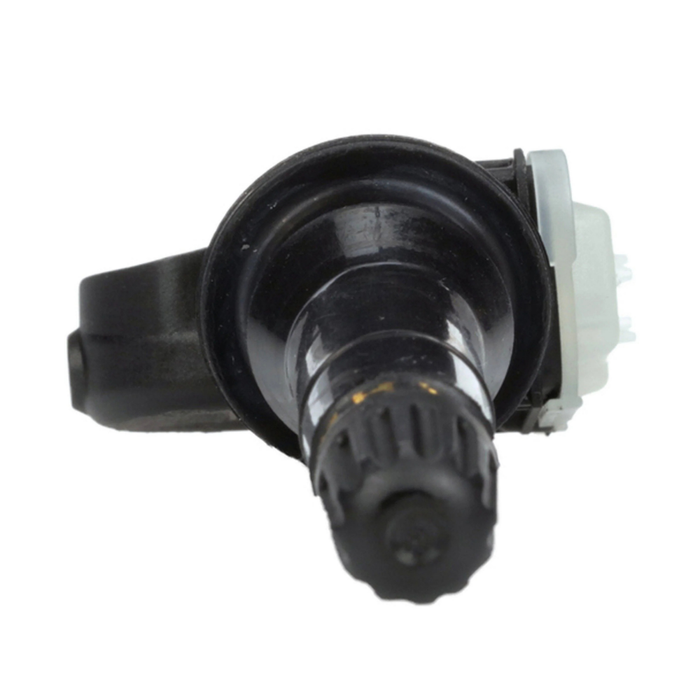

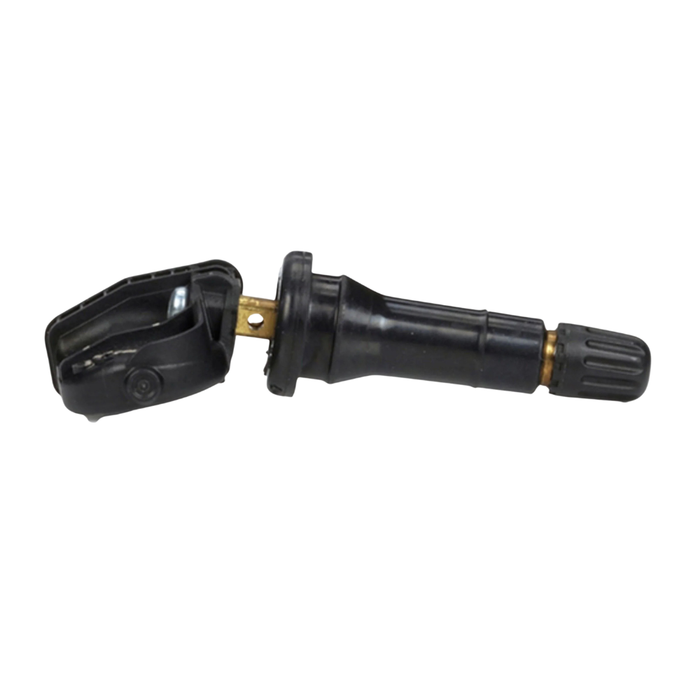

Schrader 29086 OER TPMS Sensor, 433 MHz Snap-In Rubber Valve for GM (Ea.)

Schrader 29086 OER TPMS Sensor, 433 MHz Snap-In Rubber Valve for GM (Ea.)

$16.43
$16.43 $26.08
Skip to product information
Schrader 29086 OER TPMS Sensor, 433 MHz Snap-In Rubber Valve for GM (Ea.)
  • Schrader 29086 OER TPMS Sensor, 433 MHz Snap-In Rubber Valve for GM (Ea.)
  • Schrader 29086 OER TPMS Sensor, 433 MHz Snap-In Rubber Valve for GM (Ea.)
  • Schrader 29086 OER TPMS Sensor, 433 MHz Snap-In Rubber Valve for GM (Ea.)
  • Schrader 29086 OER TPMS Sensor, 433 MHz Snap-In Rubber Valve for GM (Ea.)
  • Schrader 29086 OER TPMS Sensor, 433 MHz Snap-In Rubber Valve for GM (Ea.)
  • Schrader 29086 OER TPMS Sensor, 433 MHz Snap-In Rubber Valve for GM (Ea.)
  • Schrader 29086 OER TPMS Sensor, 433 MHz Snap-In Rubber Valve for GM (Ea.)
  • Schrader 29086 OER TPMS Sensor, 433 MHz Snap-In Rubber Valve for GM (Ea.)
Schrader 29086 OER TPMS Sensor, 433 MHz Snap-In Rubber Valve for GM (Ea.)

Schrader 29086 OER TPMS Sensor, 433 MHz Snap-In Rubber Valve for GM (Ea.)

$16.43
$16.43 $26.08

Schrader Bridgeport 29086 is an OE Replacement tire pressure monitoring system sensor with a 433 MHz frequency and snap-in rubber valve for compatible GM vehicle applications. The pre-programmed, non-programmable sensor supports Tire Fill Alert and mounts at the wheel for TPMS replacement service. Sold individually; a vehicle-specific TPMS relearn may still be required after installation.

<>

Features:

  • 433 MHz OE Replacement TPMS sensor
  • Snap-in rubber valve with snap-fit attachment
  • Tire Fill Alert support for compatible GM vehicle applications
  • Pre-programmed, non-programmable sensor configuration
  • Wheel-mounted replacement design
  • Replacement sensor for SCHRFK4S TPMS Retrofit Kit
<>

Specs:

Part No.: 29086
Product Type: OE Replacement TPMS Sensor
Product Configuration: Single replacement sensor
Frequency: 433 MHz
Valve Type: Snap-in rubber valve
Programming: Pre-programmed, non-programmable
Attachment Method: Snap-fit
Mounting Location: Wheel
Recommended Torque: 11.5 in-lb / 1.3 N·m
Housing Material: Plastic
Valve Stem Material: Rubber
Valve Color: Black
UPC: 651001218378
Qty: Ea.

Replaces:
- Schrader 20154
- Schrader 29015
GM OE Reference Numbers:
- 13516165
- 13598771
- 13598773
<>

Application:

Wheel-mounted TPMS replacement service for compatible GM vehicle applications.

Fitment:
Vehicle Applications
- Buick: Enclave 2017-2020, LaCrosse 2017-2019, Regal 2018-2020, Regal Sportback 2018-2020
- Cadillac: CT4 2020-2022, CT6 2016-2022, XT4 2019-2020, XT5 2016-2021, XT6 2020-2022
- Chevrolet: Blazer 2019-2020, Camaro 2016-2020 non-ZL1 applications, Cruze 2016-2020, Cruze Limited 2016, Malibu 2016-2020, Malibu Limited 2015-2018, Traverse 2018-2020, Volt 2017-2018
- GMC: Acadia 2018-2020, Acadia Limited 2017-2020
Schrader TPMS Retrofit Kit
- SCHRFK4S <>

Includes:

Rubber valve stem
Valve cap
Mounting hardware
