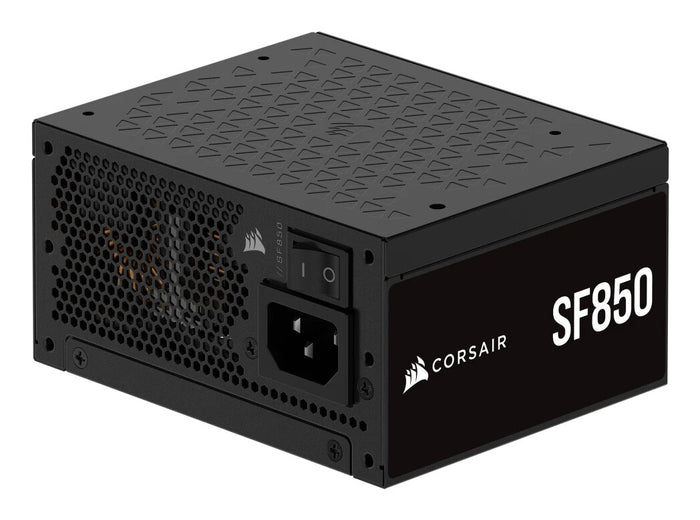

Corsair SF850 power supply unit 850 W 24-pin ATX ATX Black
$136.99
Sale price
$136.99
Regular price
$220.95
Skip to product information
Corsair SF850 power supply unit 850 W 24-pin ATX ATX Black
$136.99
Sale price
$136.99
Regular price
$220.95
- 850 W 100 - 240 V 47 - 63 Hz
- Motherboard power connector: 24-pin ATX
- PC ATX 80 PLUS Platinum
- Active 9.2 cm
- Black
Outfit your next SFF PC with a CORSAIR SF Series 80 PLUS Platinum SFX Power Supply for compact, ATX 3.1 compliant, fully modular Platinum power.
| Power | |
|---|---|
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit |
| Max output current (+5Vsb) | 3 A |
| Max output current (+5V) | 20 A |
| Max output current (+12V) | 70.8 A |
| Max output current (+3.3V) | 20 A |
| Combined power (+5Vsb) | 15 W |
| Combined power (+5V) | 130 W |
| Combined power (+12V) | 850 W |
| Combined power (+3.3V) | 130 W |
| Input current | 5 - 10 A |
| AC input frequency | 47 - 63 Hz |
| AC input voltage | 100 - 240 V |
| Total power | 850 W |
| Ports & interfaces | |
|---|---|
| Cabling type | Fully-Modular |
| ATX power connector (12+4 pin) | Yes |
| PCI Express power cable length | 75 cm |
| PCI Express power connectors (6+2 pin) | 3 |
| EPS power connector (4+4 pin) | Yes |
| SATA power cable length | 455 mm |
| Number of SATA power connectors | 3 |
| Number of PATA power connectors | 1 |
| Motherboard power cable length | 30 cm |
| Motherboard power connector | 24-pin ATX |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 100000 h |
| Bearing technology | FDB |
| Silent mode | Yes |
| ATX version | 3.1 |
| 80 PLUS certification | 80 PLUS Platinum |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Design | |
|---|---|
| On/off switch | Yes |
| Fan location | Top |
| Number of fans | 1 fan(s) |
| Fan diameter | 9.2 cm |
| Cooling type | Active |
| Product colour | Black |
| Packaging content | |
|---|---|
| Cables included | AC |
| Weight & dimensions | |
|---|---|
| Weight | 2.3 kg |
| Height | 63.5 mm |
| Depth | 100 mm |
| Width | 125 mm |
| Packaging data | |
|---|---|
| Package type | Box |
